The portfolio evaluation evaluates combinations of projects (portfolio) over several axes. The basis of this evaluation is the combination of projects in the mask portfolio. In this mask the projects can be compiled and the axes for the evaluations can be predefined.

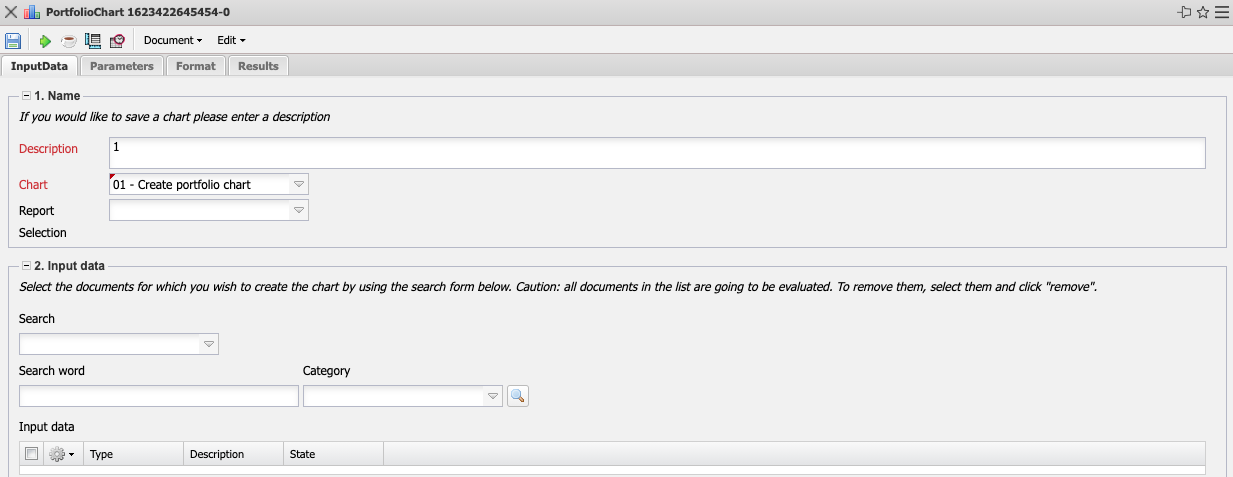

The mask consists of the following elements:

• Name: In this field, you define the name of the evaluation if it is to be saved (for example, for time services or to manage the evaluation results).
• Evaluation: The portfolio evaluation consists of the evaluation portfolio diagram, which generates tabular or graphical evaluations with regard to the information in the X, Y, Z and color categories. The key figures available for the X, Y and Z axes are quotation value, completion, actual time, actual costs, planned sales, planned duration, planned costs, invoice value and probability. Up to five project categories (such as project type), priority, and project status are available as key figures for the color category.
• Report Selection: In this field the new report selection can be selected.

• Professional Search: This selection box allows you to use professional searches for the input data of the evaluation. However, these professional searches must refer to the supported categories.
• Search Engine: Quick Search and Category: This element is used to filter the selected data from the categories. The document categories Work package, Employee, Project, Activity and Unit are available for selection. The operation of the search engine is also described in section 3.02.3 and can be executed several times here if necessary.
• Input Data: This field lists the selected selection criteria for the evaluation. This input data can come from the professional search, the standard search engine or the personal file.

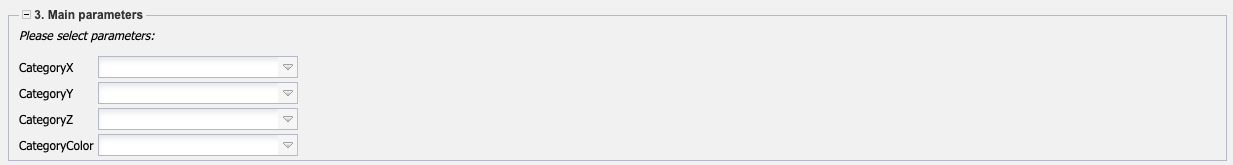

• X, Y, Z Category and the Color Category: These selection boxes refer to the evaluation axes and support the above mentioned key figures.

• Width: This field defines the width in pixels (px) of the graphic evaluation.
• Height: This field is used to specify the size of the font in points (pt) for graphical evaluation.
• Display: With the help of this selection the generated evaluation can be generated in different formats. Supported formats are HTML (default setting), CSV, XLS, RTF and PDF.
• Chart Type: With the help of this selection a diagram type can be chosen for the generated evaluation. Projectile offers various bar charts (2D, 3D, vertical, horizontal, …), bar stacks, line and area charts, pie charts and bubble charts.
• Display Evaluation Parameters: Here you select whether the evaluation parameters are displayed.

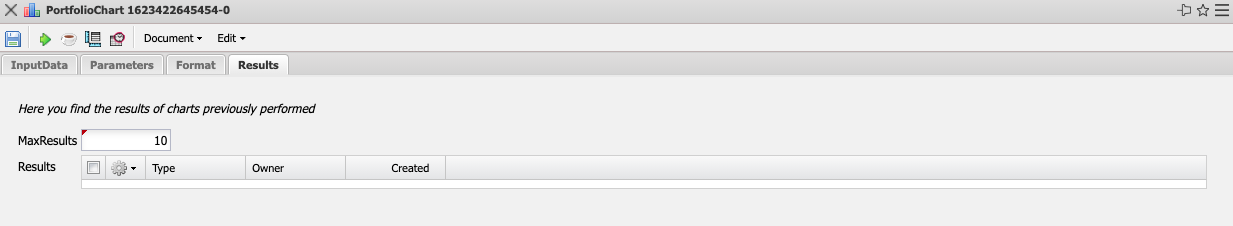

This tab contains the maximum number of results and the results of evaluations already performed.
